Description

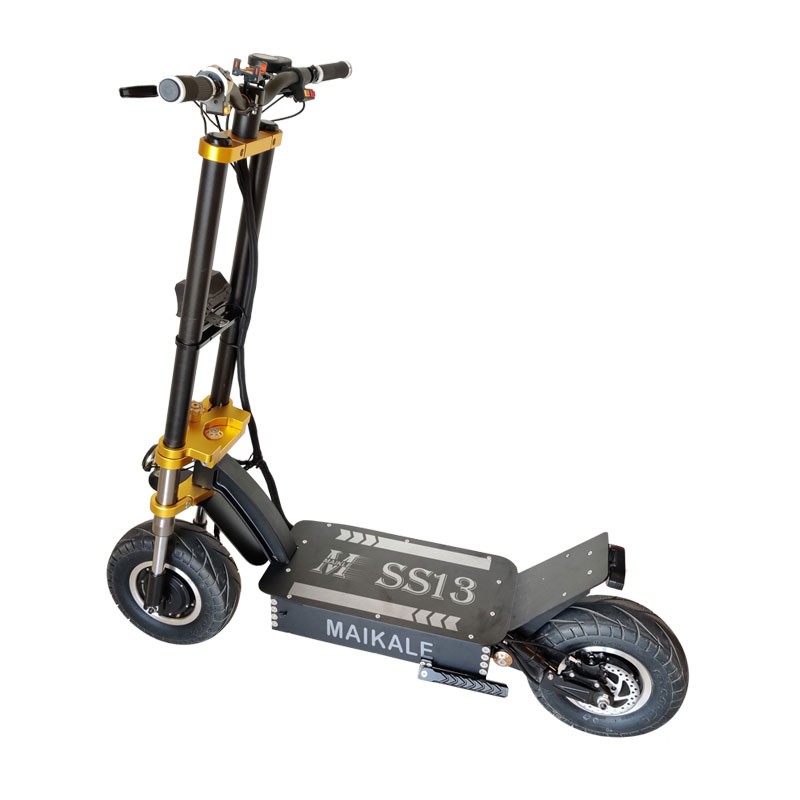

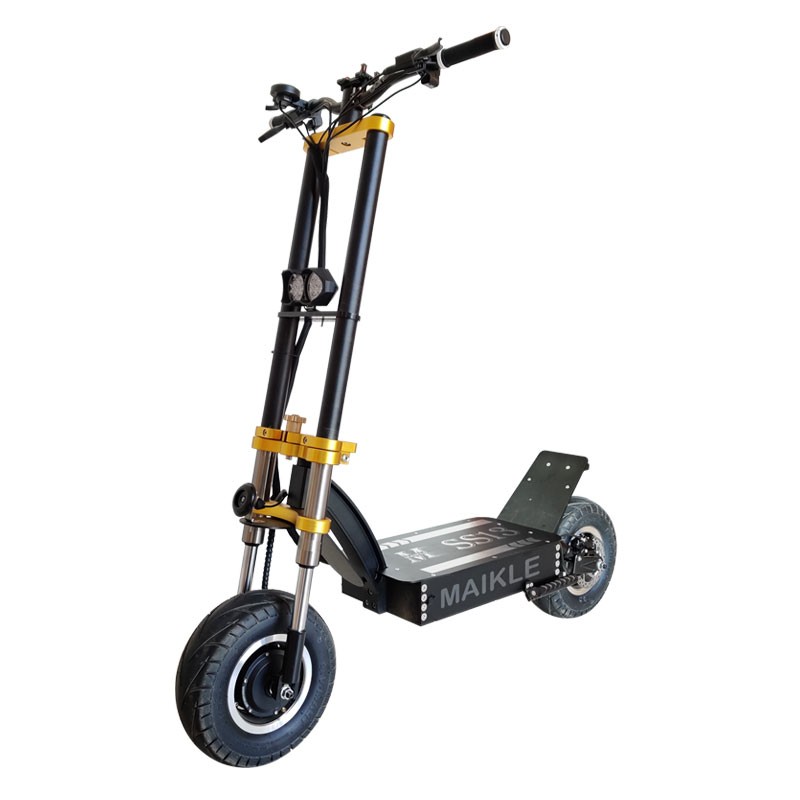

13 inch tire Adult Dual Full Suspension Powerful 80km/h Electric Scooter
Specification:
| Parameter | SS13 Lite (52V) | SS13 (60V) | SS13 Pro (72V) | |||
| Tire size(inch) | 13 inch vacuum tire | 13 inch vacuum tire | 13 inch vacuum tire | 13 inch vacuum tire | 13 inch vacuum tire | 13 inch vacuum tire |
| Controller | square wave 25A*2 | 25A*2 | 40A*2 | 40A*2 | 40A*2 | 40A*2 |
| Motor type | Brushless Direct Current(BLDC) | Brushless Direct Current(BLDC) | Brushless Direct Current(BLDC) | Brushless Direct Current(BLDC) | Brushless Direct Current(BLDC) | Brushless Direct Current(BLDC) |
| Motor Power(W) | 2000 ( 1000*2) | 2000 ( 1000*2) | 2000 ( 1000*2) | 2000 ( 1000*2) | 2000 ( 1000*2) | 2000 ( 1000*2) |
| Peak power (W) | 3200 | 3200 | 4800 | 4800 | 5600 | 5600 |
| Drive Mode | Dual Drive or Single Drive switch | Dual Drive or Single Drive switch | Dual Drive or Single Drive switch | Dual Drive or Single Drive switch | Dual Drive or Single Drive switch | Dual Drive or Single Drive switch |
| Maximum speed | 60KM/H | 60KM/H | 80KM/H | 80KM/H | 80KM/H | 80KM/H |
| Speed Adjustment | 3 shift | 3 shift | 3 shift | 3 shift | 3 shift | 3 shift |
| Maximum gradeability | >30° | >30° | >40° | >40° | >45° | >45° |
| Maximum range | 70KM | 120KM | 100KM | 120KM | 100KM | 120KM |
| Brake | NUTT Dual Hydraulic disc brake | NUTT Dual Hydraulic disc brake | NUTT Dual Hydraulic disc brake | NUTT Dual Hydraulic disc brake | NUTT Dual Hydraulic disc brake | NUTT Dual Hydraulic disc brake |
| Number of the brake | 2 | 2 | 2 | 2 | 2 | 2 |
| Shock absorber | Front and rear hydraulic shock absorbers | Front and rear hydraulic shock absorbers | Front and rear hydraulic shock absorbers | Front and rear hydraulic shock absorbers | Front and rear hydraulic shock absorbers | Front and rear hydraulic shock absorbers |
| Colour | Red, blue, gold | Red, blue, gold | Red, blue, gold | Red, blue, gold | Red, blue, gold | Red, blue, gold |
| EBS electromagnetic brake | Motor E braking, energy recovery | Motor E braking, energy recovery | Motor E braking, energy recovery | Motor E braking, energy recovery | Motor E braking, energy recovery | Motor E braking, energy recovery |
| Battery capacity | 18.2AH, Chinese battery | 30 AH, Chinese battery | 26 AH, Chinese battery | 35AH, Samsung or LG battery | 26AH, Samsung or LG battery | 35AH, Samsung or LG battery |
| Batteries Voltage | 52V | 52V | 60V | 60V | 72V | 72V |
| Charging performance (A) | 2A | 2A | 2A | 2A | 2A | 2A |
| Material | Aerospace grade aluminum alloy | Aerospace grade aluminum alloy | Aerospace grade aluminum alloy | Aerospace grade aluminum alloy | Aerospace grade aluminum alloy | Aerospace grade aluminum alloy |
| Processing technology | CNC processing technology | CNC processing technology | CNC processing technology | CNC processing technology | CNC processing technology | CNC processing technology |
| Screws material | Stainless steel screws | Stainless steel screws | Stainless steel screws | Stainless steel screws | Stainless steel screws | Stainless steel screws |
| Maximum load | 150KG | 150KG | 150KG | 150KG | 150KG | 150KG |
| Lights | LED headlamp/rear/brake/running lights | LED headlamp/rear/brake/running lights | LED headlamp/rear/brake/running lights | LED headlamp/rear/brake/running lights | LED headlamp/rear/brake/running lights | LED headlamp/rear/brake/running lights |
| Horn | include | include | include | include | include | include |
| Packing size (mm) | L1400/H700/W350 | L1400/H700/W350 | L1400/H700/W350 | L1400/H700/W350 | L1400/H700/W350 | L1400/H700/W350 |
| Net Weight | 46 KG | 49 KG | 49 KG | 49 KG | 51 KG | 51 KG |
| Gross Weight | 48 KG | 51 KG | 51KG | 51 KG | 53 KG | 53 KG |
| Accessories | Manual / Tools | Manual / Tools | Manual / Tools | Manual / Tools | Manual / Tools | Manual / Tools |
| Cartons | include | include | include | include | include |
include |
